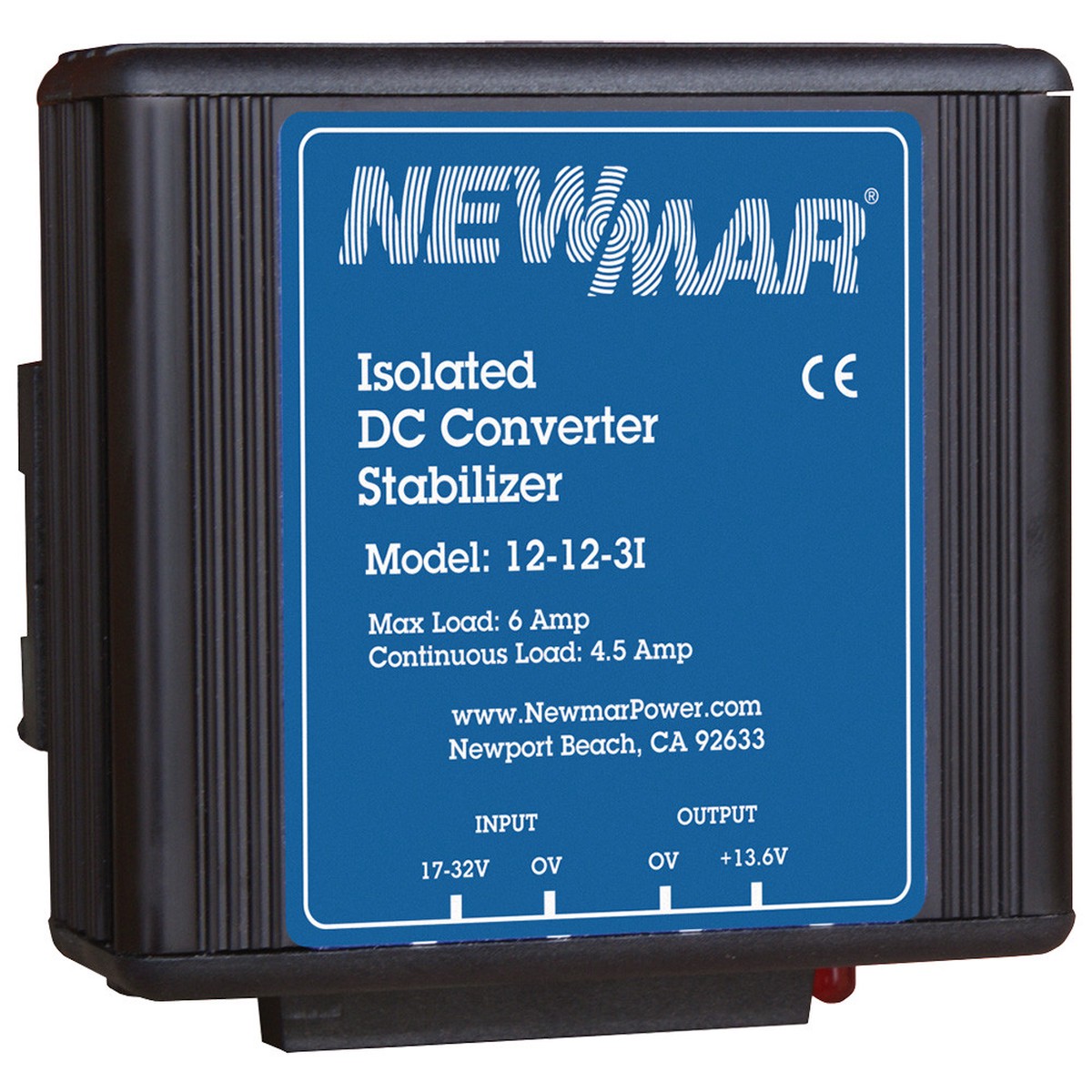

12-12-3i Power StabilizerFeed sensitive electronics with proper voltage, regardless of the battery condition. This stabilizing converter provides continuous, precisely regulated output over the entire range of a batterys usable voltage. This prevents subjecting loads to fluctuating input voltage, which can cause shutdown, diminish performance, and possibly damage sensitive circuitry.This converter provides total input/output isolation, virtually eliminating conducted line noise and permitting the connection of negative ground gear to positive or floating ground systems, or vice versa. It can be modified for use as a battery charger, allowing them to maintain a battery at a great distance from the primary voltage source, providing reserve power if the main source fails. The rugged anodized aluminum case is ideal for marine applications.Application Benefits Include:Operate electronics at optimal input voltage, even from nearly drained batteriesBoost voltage to compensate for voltage drops in long wire runs from batteriesEliminate voltage drops during momentary high current drain from batteries, as during engine startEliminate voltage fluctuation from charge sourcesEliminate voltage overshoot due to sudden removal of high current loadSpecifications:Input Voltage: 10-16Input Amps: 4Output Voltage: 13.6Output Amps (Intermittent): 3Output Amps (Continuous): 3Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters)Weight: 1 lb. (.45 kg)Output: 12 or 24V, nominal, see matrixRipple: 150 mV P-P maximumRegulation: 1% Line/LoadDuty Cycle Ratings:Intermittent: 20 minutes max on time, 20% duty. Current limit is set at approx. 105% of intermittent rating.Continuous: 24 hours, 100% dutyIdle Current: Less than 100 mA (including power ON light )Operating Temp: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature.Switching Frequency: 40 kHz.Efficiency: 85% Typical.Isolation Output/Chassis; Input/chassis: 250 VDCMechanical Specifications:Anodized aluminum heat sink caseFront panel terminal blockHeavy-duty mounting flangeConformal-coated PC boardOptions/Factory Modifications:Operation as a battery charger (contact factory)Parallel/redundant operation (contact factory)High-vibration mounting kitNon-standard output voltage (contact factory)Option: Extreme Vibration Mounting KitThe Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles.The kit (pictured here) replaces the standard vibration kit provided with the unit and fits into the units mounting flange to act as a super shock absorber for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KITL for units that weigh 215 lbs. and KitH for units that weigh 16-70 lbs.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
